Slide – Snap Aluminum Extrusion XYZ Joint

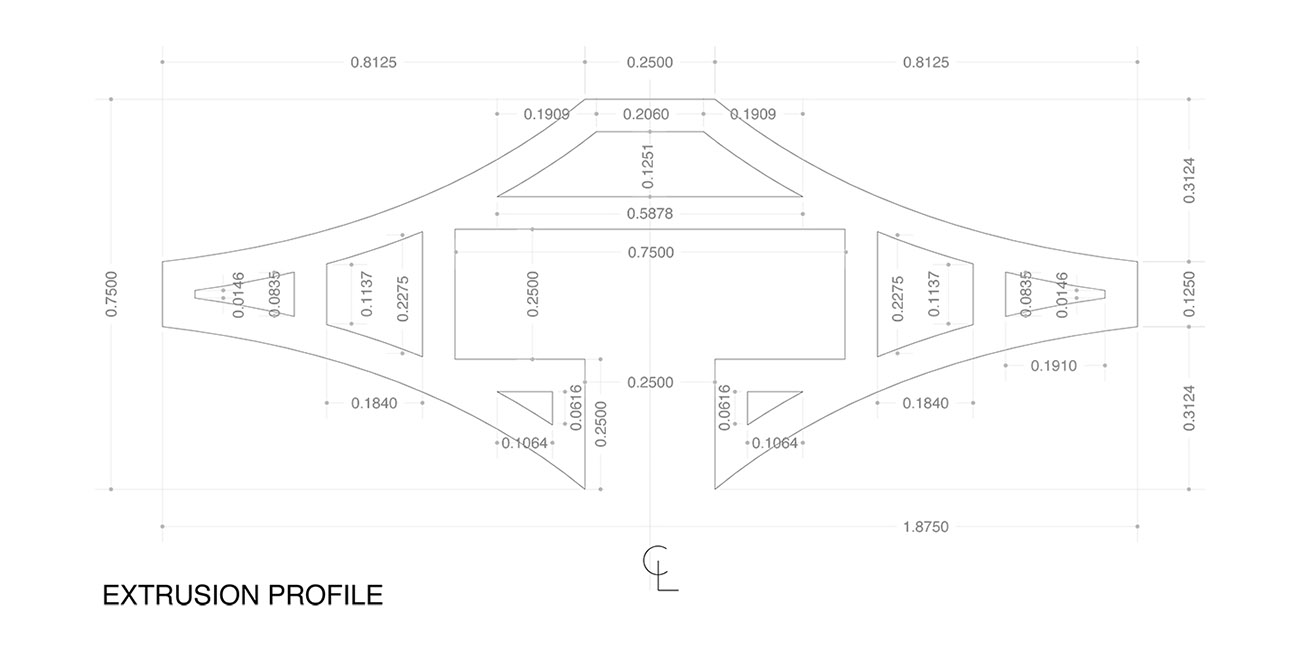

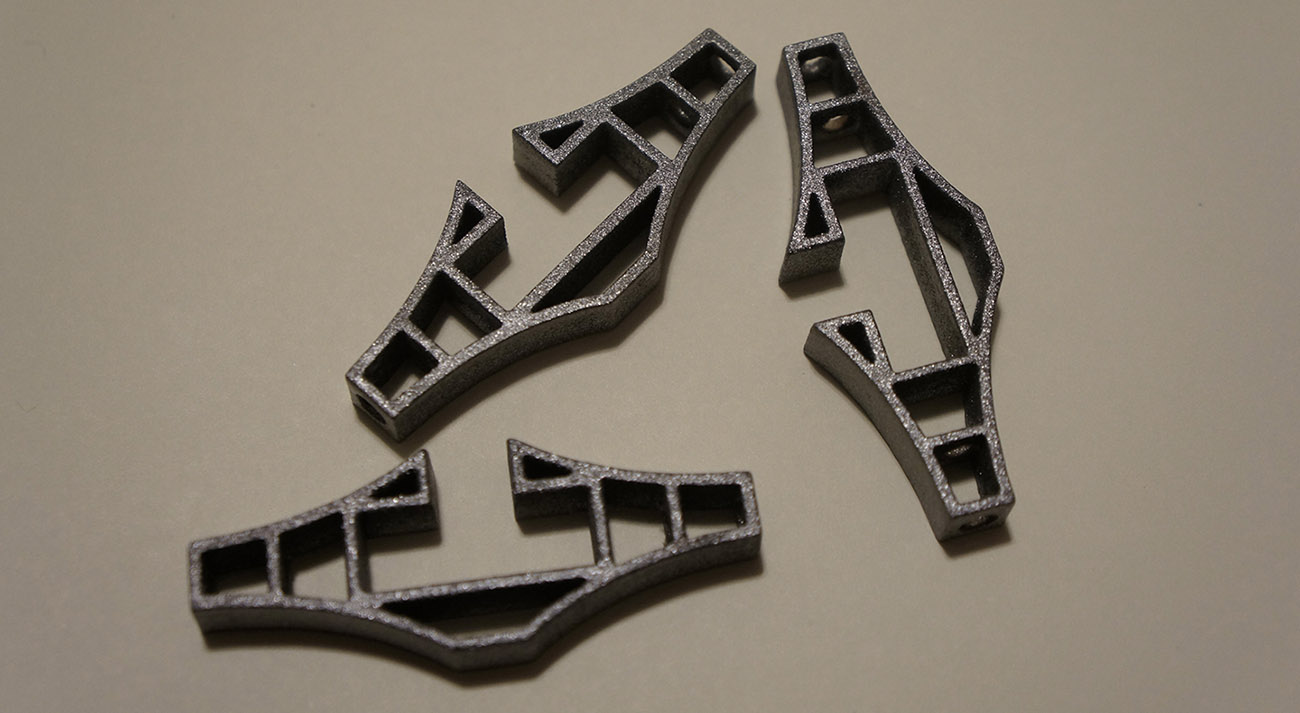

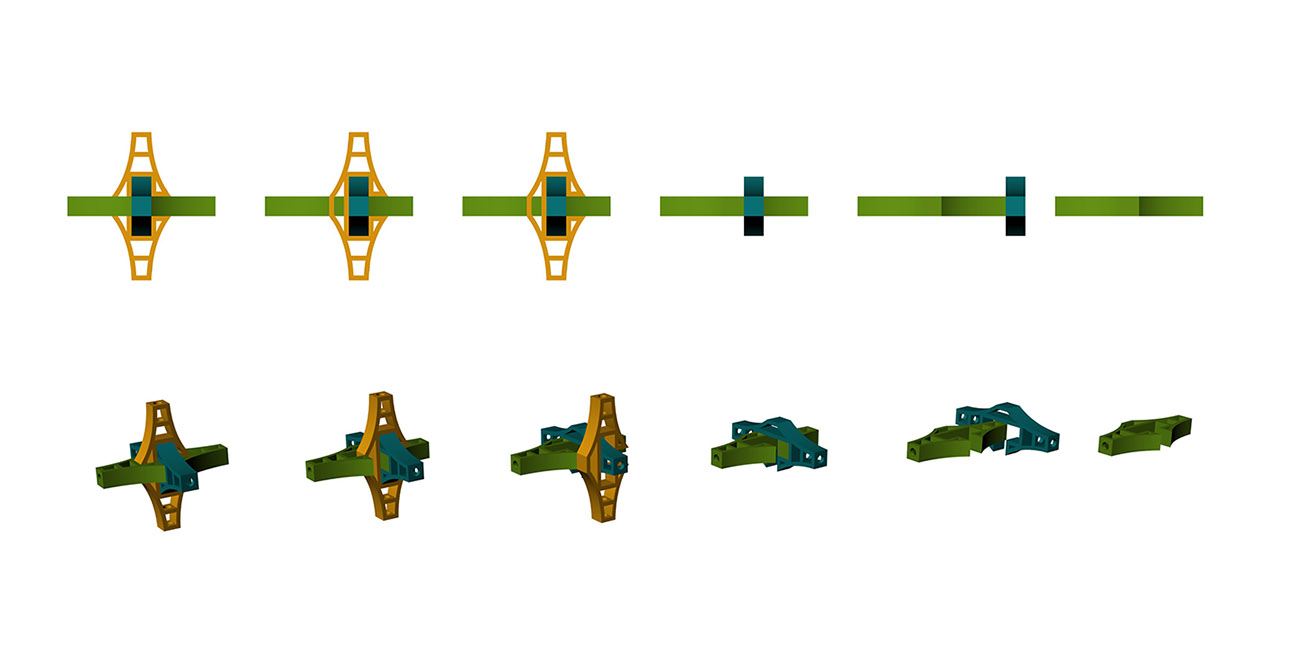

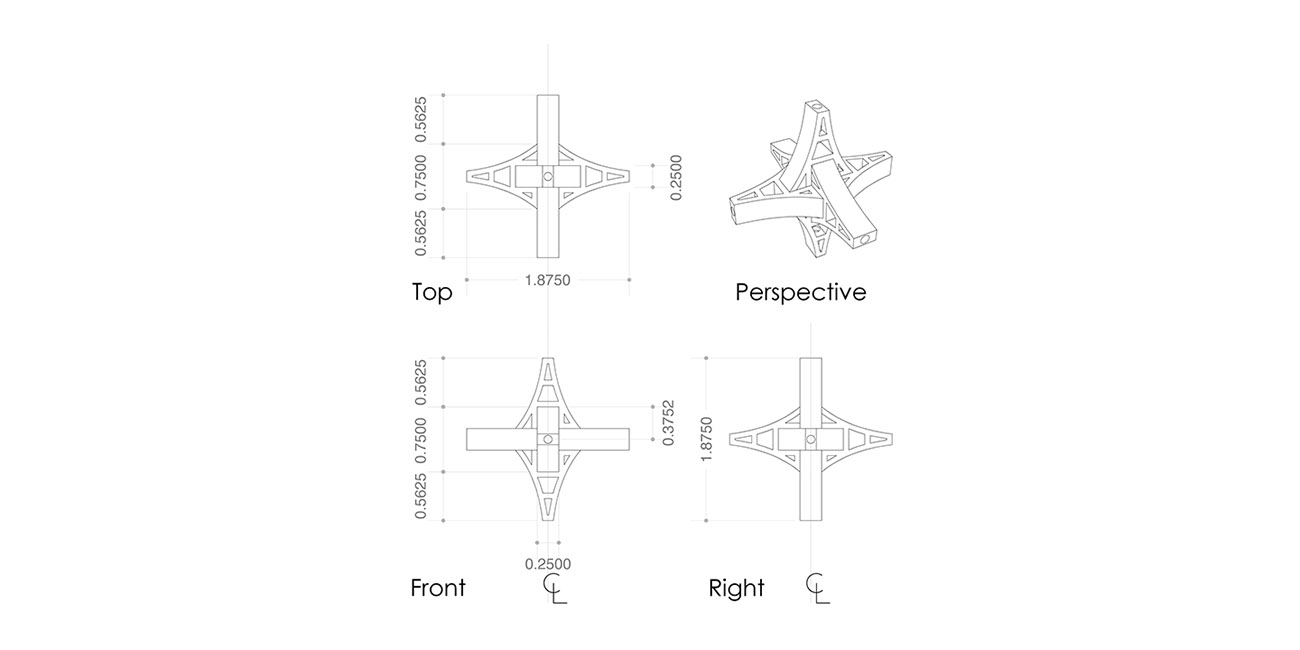

This aluminum extrusion XYZ joint is a three-way joint ( X, Y, Z ) for an exhibition system. The joint locks together without the use of additional hardware such as bolts. The Slide – Snap uses three identical pieces of aluminum that have a five-step locking sequence which snap any length of steel dowel into each end expanding the system.

Stats/Info

School: Pratt Institute

Program: Industrial Design

Year: 2013

Medium/Materials

Laser-cut MDF

Spray Paint

Tools/Skills Used

Industrial Design

Product Design
